#1 Targa top fitament
jimmymack Posted on: 2010/3/3 14:53
Is there any way for a 84 targa top to be retrofitted to fit a 95? I've found comments on how to fit late C4's to early C4's but not the other way around.

Thanks.

#2 Re: Targa top fitament
383tpimachine Posted on: 2010/3/3 15:39
Im running a 89 top on my 85 and all i changed was the front brackets

whats the difference between the rear mounts on later years? the fronts are easy to change with 2 bolts

#3 Re: Targa top fitament
jimmymack Posted on: 2010/3/3 16:21
84 to 86 had a 1 hole, 1 pin cone, on L-R front.

86-88 and 89-96 had a 3 hole with a screw arrangement. They have similar mounting plates but able to swap.

Rear mounts were all the same.

#4 Re: Targa top fitament
383tpimachine Posted on: 2010/3/3 16:52
Quote:

jimmymack wrote:
84 to 86 had a 1 hole, 1 pin cone, on L-R front.

86-88 and 89-96 had a 3 hole with a screw arrangement. They have similar mounting plates but able to swap.

Rear mounts were all the same.


just buy the front bracket and y=you should be good to go i would assume

#5 Re: Targa top fitament
Matatk Posted on: 2010/3/3 17:00
This is a post by melrose, an aftermarket top supplier:

http://forums.corvetteforum.com/c4-te ... tly-install-c4-roofs.html

Factory correct C4 roof installation procedure

Melrose T-Top Int. has been in the Corvette business for over 30 years. In that time we have taken lead position as the most reputable GM licensed aftermarket supplier of Corvette roofs and t-tops in the industry.
That being said, I feel comfortable explaining to you what seems to be a gray area in the Corvette world regarding replacement roof installation and adjustment. Most C4 Corvette owners don’t lend much thought to their tops as being an integral part of the vehicle’s structural integrity. The C4 however was initially designed as T-bar vehicle like the C3’s, and it wasn’t until a GM exec ordered the car be converted to a targa model, the engineers realized they had a problem. With the T-bar removed handling characteristics suffered greatly due to torsional flexibility. Unfortunately for us the only viable solution to this was an inconvenient bolt in bulky style targa roof.

The first thing you want to do when purchasing a new roof is verify the year of the roof on your car. Even though your car may be a 1988 it could have been converted at one point. Sound unlikely? GM sold a kit for many years to convert 84-88 Corvettes to the third design 89-96 roof styles. This was due in part to the fact that only one roof design was available and it generated more income selling and installing the kits. So, how do I determine my roof year design? You can compare your front mounting hardware with chart below or measure between your front mounting bolts.

Measured from bolt to bolt O.C. across top of windshield frame.
· 1st design 84 - Early 86 28.5”
· 2nd design Late 86-88 31.5”
· 3rd design 89-96 32.5”

1984 - 1996 Roof Panel Hardware Detail

Click to see original Image in a new window


We have established the structural importance of the C4 targa style roof and it’s different designs. Now we can discuss how to properly install it, or better yet, how not to. Start by parking your vehicle on flat ground, and inflating all tires to factory specs then follow the instructions below per your specific vehicle year.

1st design 84-Early 86 front adjustments-

1. Make sure front cone / plate assembly is loose enough to move by hand.
2. Set the roof on the car and tighten rear center bolts. If bolts are being difficult to start, recheck to make sure roof is centered, and have a second person push roof towards back of car to help compress the new weatherstrip.
3. Tighten the outer two rear locator bolts.
4. Tighten front mounting bolts. You may need to move the plate assembly around while trying to line up and tighten front mounting bolts with other hand.

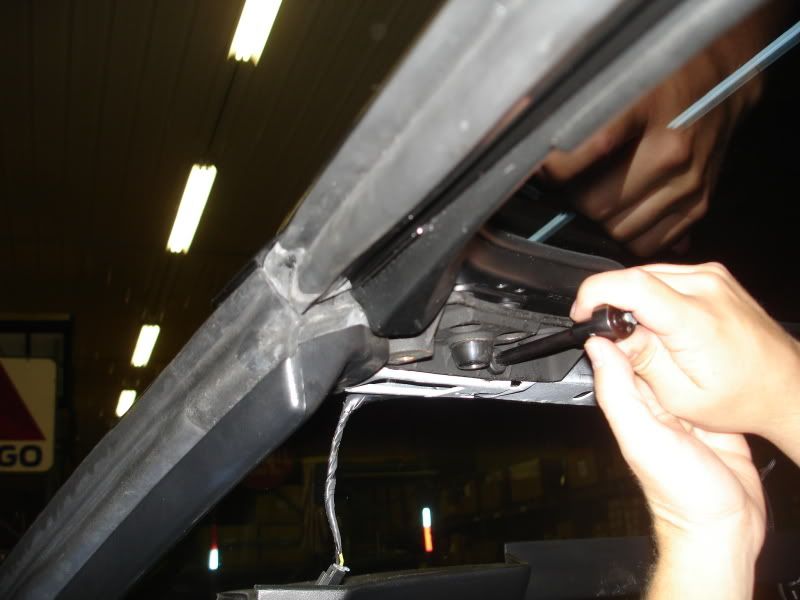

5. Tighten cones with thin 1 1/8” installation wrench as seen here:

- 84-E86 Install wrench

Click to see original Image in a new window

6. Loosen center front mounting bolts. Retighten front bolts paying close attention to when front of the roof’s lens makes an even contact with the windshield weatherstrip. The front edge should only put approximately 1/8” of pressure on the weatherstrip for proper sealing as front bolts are tightened. Too much pressure may cause warps, cracks, or other problems. Too little pressure may result in air or water leaks. If you feel there is too much pressure being put onto the front of the lens please refer to 2nd design install instruction below to adjust front roof mounting brackets.


2nd design Late 86-96 front adjustments

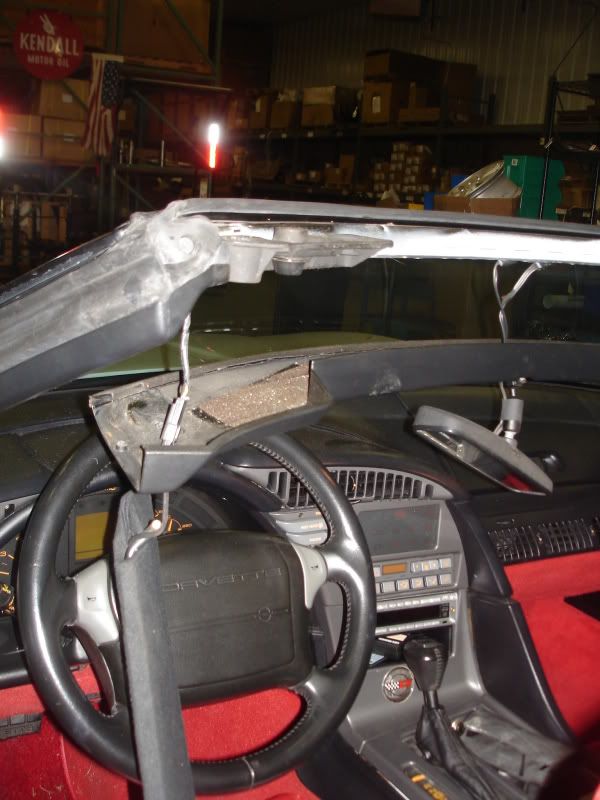

1. Drop front upper windshield trim panel by removing 5 Phillips screws (1 rear view mirror screw and 4 outer)
2. Remove front upper roof mounting bracket covers via 2 Phillip screws per side
3. Remove 5/16” visor nuts and pop off spring retaining washers using a flat screwdriver
4. Visors will slide out and allow entire trim panel, mirror, and visors to hang

Click to see original Image in a new window

5. Go to roof and make sure front plate assembly on roof is loose enough to move by hand.
6. Set the roof on the car and tighten rear center bolts. If bolts are being difficult to start, recheck to make sure roof os centered, and have a second person push roof towards back of car to help compress the new weathertstrip.
7. Tighten the outer two rear locator bolts.

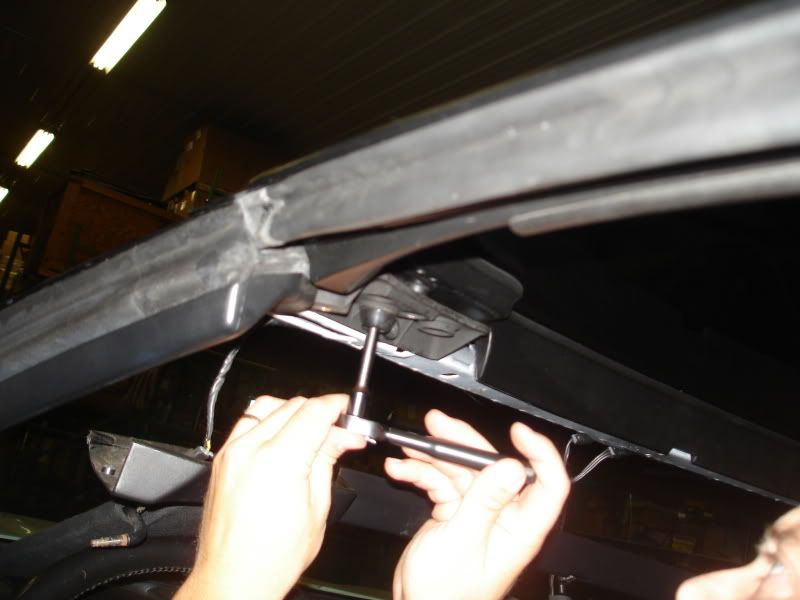

8. Tighten center front mounting bolts. You may need to move the plate assembly around while trying to line up and tighten front mounting bolts with other hand

Click to see original Image in a new window

9. Tighten outer front roof plate bolts
10. Loosen center front mounting bolts. Retighten front bolts paying close attention to when front of the roof’s lens makes an even contact with the windshield weatherstrip. The front edge should only put approximately 1/8” of pressure on the westherstrip for proper sealing as front bolts are tightened. Too much pressure may cause warps, cracks, or other problems. Too little pressure may result in air or water leaks.
11. If you feel there is too much pressure on the front of the lens, loosen the front mounting brackets and move upward as necessary. (Tip- mark the windshield frame where bracket is sitting before you loosen it, so you have a origin to return to if needed)

Click to see original Image in a new window

12. Once roof is adjusted reassemble trim parts in reverse order. Pay attention to rear view mirror wires so they don’t get pinched.


Note-
· There are many people installing cheap aftermarket weatherstrips on their cars these days. Sometimes you don’t have a choice, but if you do, always try to find something as close to the factory latex covered foam type weatherstripping. Avoid the rubber (gummy bear) feeling stuff. It doesn’t compress very well and causes damage in many cases to Corvette transparent roofs. If you install these on your car you must readjust your front mounting brackets.

· Shims may be added or removed behind rear brackets to adjust rear roof gap, though this is most often not needed. Drop rear trim panel to access rear mounting brackets.

#6 Re: Targa top fitament
Livin_the_dream Posted on: 2010/3/3 17:04
front bracket and trim. the hold down bolt spacing is different. cannot buy any new so you have to go to salvage yard or find someone parting one out
